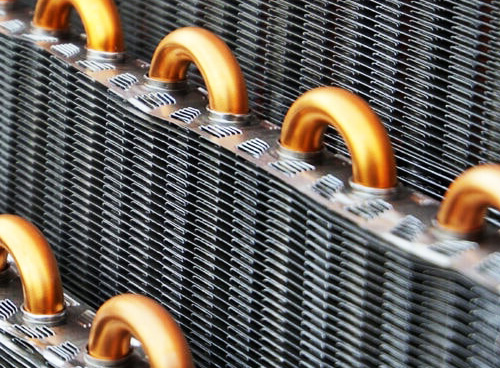

Our comprehensive fin and tube configuration datasheet provides detailed specifications for air conditioning coils, ensuring optimal performance across various applications. It covers essential parameters such as tube outer diameter (OD), pitch patterns, row spacing, fin surface types, fin edges, fins per inch (FPI), tube types, and material thickness.

Whether you’re selecting inner-grooved or plain tubes, louvered, corrugated, or pyramid fins, our configurations are designed to enhance heat transfer efficiency and system durability. Explore our datasheet to find the ideal coil specifications tailored to your HVAC requirements.
